Tutorial

This tutorial will demonstrate how to create a simple, single-function module using ModuleForge, with 1 pester test, and deploy via Azure DevOps Pipelines.

Part 0 - Local Environment Setup

  1. Make sure you have completed the prerequisit
  2. Setup your local workspace. You will need to have installed
    • PowerShell 7+
    • VSCode (or your IDE of choice)
      • If you use an IDE other than VSCode, you will need to correct the instructions in this tutorial accordingly
    • GIT commandline
  3. Install PowerShell module dependencies. You will need the following modules from the PSGallery:
    • Pester 5.6+
    • PSScriptAnalyzer 1.24+
    • Microsoft.PowerShell.PSResourceGet 1.1.1+
    • ModuleForge 1.2.0+

Note: All the required modules are cross-platform compatible. You’re OS of choice does not matter.

Here is a code-snippet to help get you started

#Use the legacy PowerShell Get command to get PSResourceGet
Install-Module Microsoft.PowerShell.PSResourceGet

#Switch to PSResourceGet for the remainder
Install-PSResource -repository PSGallery -Name Pester,PSScriptAnalyzer,ModuleForge

Part 1 - New Repository

  1. Login to your Azure DevOps project

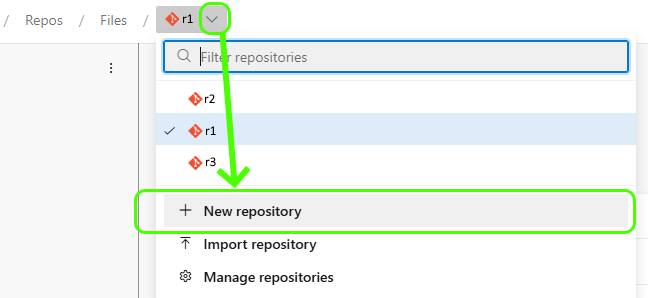

  2. Select Repos from the left menu, then use the small down arrow at the top to select New Repo
    • New Repository
  3. Fill in the Create a Repository menu
    • Your new repository should be called PSHelloWorld
    • You can leave the option for a readme selected
    • You can leave .gitignore set to none
  4. Clone your repository to your local environment

hint: If you are unsure of how to clone a repository, copy the URI from the browser address bar and use it with the git clone command, e.g. git clone https://dev.azure.com/AzureDevOps-OrgName/AzureDevOps-ProjectName/_git/AzureDevOps-RepoName

Part 2 - Create a new ModuleForge Project

  1. From your repository directory, run the New-MFProject function to build the files out, as per the example below
  2. Check you have created a source directory and a module config file moduleForgeConfig.xml. The source directory shoud have a number of subfolders
  3. Run the Add-MFAzureDevOpsScaffold function to add 3 Azure Pipeline YML files, and a PR template to the .azuredevops directory of your module folder
  4. Check the files were created
  5. With your filestructure created and workflows added, commit and sync your repository back to origin\main
    • You should use a proper commit message, something like `chore: Initialised ModuleForge project with scaffolding & workflows’
New-MFProject -ModuleName 'psGetHelloWorld' -description 'Another Hello World module'
Add-MFAzureDevOpsScaffold

Part 3 - Add our Azure Pipelines and Build Policies

Note: The Pipeline setup and build policies steps need to be repeated for any new repositories

Adding Azure Pipelines

  1. Open Azure Devops in your browser and select Pipelines
  2. Select New Pipeline in the top right of the Pipelines window.

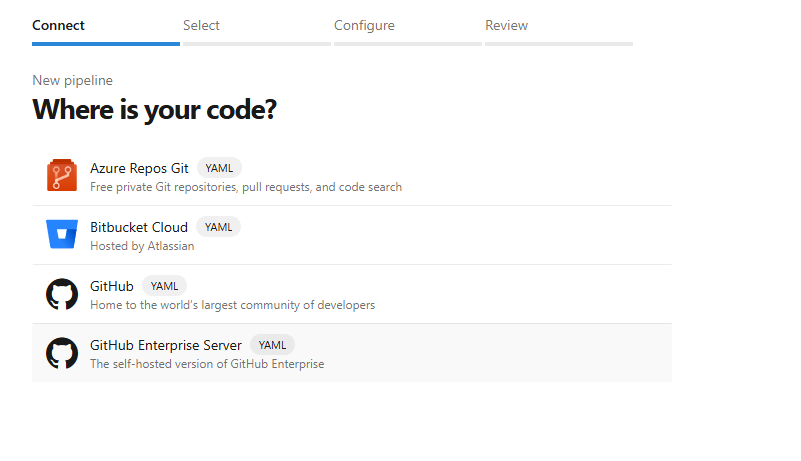

  3. In the connect tab, select Azure Repos Git as the option for where is your code
    • Where is your code
  4. Select the correct repository PSHelloWorld

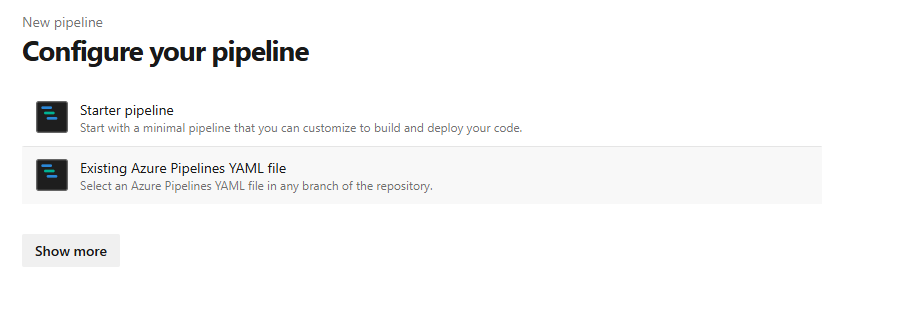

  5. In the Configure your Pipeline screen, select Existing Azure Pipeline YAML file
    • Configure Pipeline

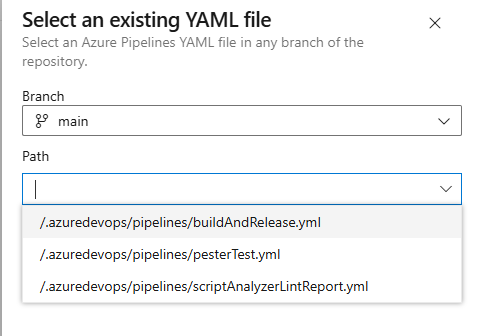

  6. Select the psScriptAnalyzerLintReport.yml file
    • Select YAML
  7. In the Review your Pipeline screen, use the small arrow next to RUN and select SAVE
  8. In the next screen, select the small three dot menu in the top-right, and select Rename/Move
    • Rename1

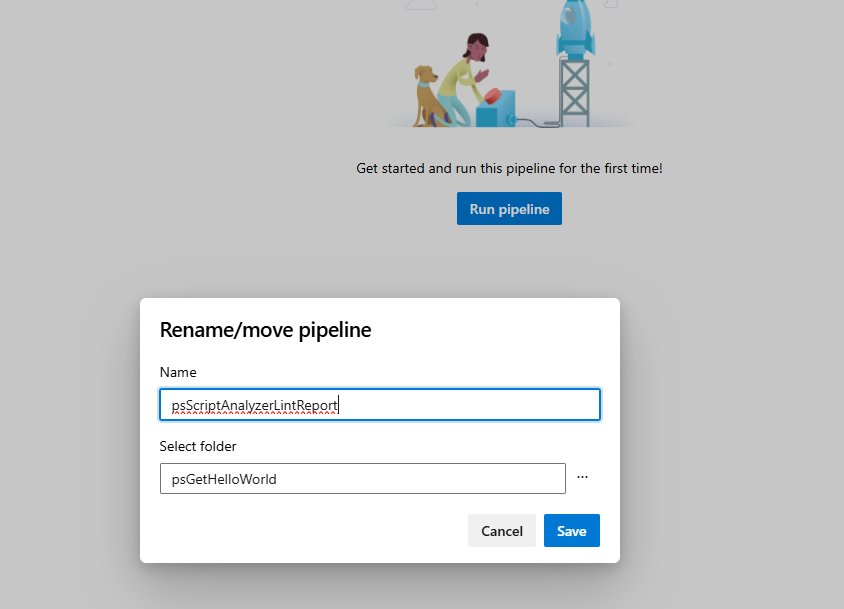

  9. Change the name and folder of the pipeline
    • The Name of the pipeline should be renamed to psScriptAnalyzerLintReport to better identify it later
    • The Select Folder should be named after the repository - PSGetHelloWorld
    • This organisational step is critical to ensure that your Pipelines are well organised and identifiable later
    • Rename2
  10. Repeat steps 2 through to 9 for buildAndRelease and pesterTesting
    • Pipelines

Adding Branch Build Policies

  1. Go to your newly created Repo and select _Branches` option
  2. At the far right, when hoverign over the main branch item, there will be a More Options menu. Open it, and select 💡Branch policies
  3. Under Build Validation, add a new item
    • Point to the psScriptAnalyzer pipeline we made in the previous section
    • Trigger should be Automatic
    • Policy should be Optional
    • Expiry can be left at default
    • Change the displayname to Script Analyzer Report for easier visualisation
  4. Under Build Validation, add a second new item
    • Point to the Pester Testing pipeline we made in the previous section
    • Trigger should be Automatic
    • Policy should be Required
    • Expiry can be left at default
    • Change the displayname to Pester for easier visualisation

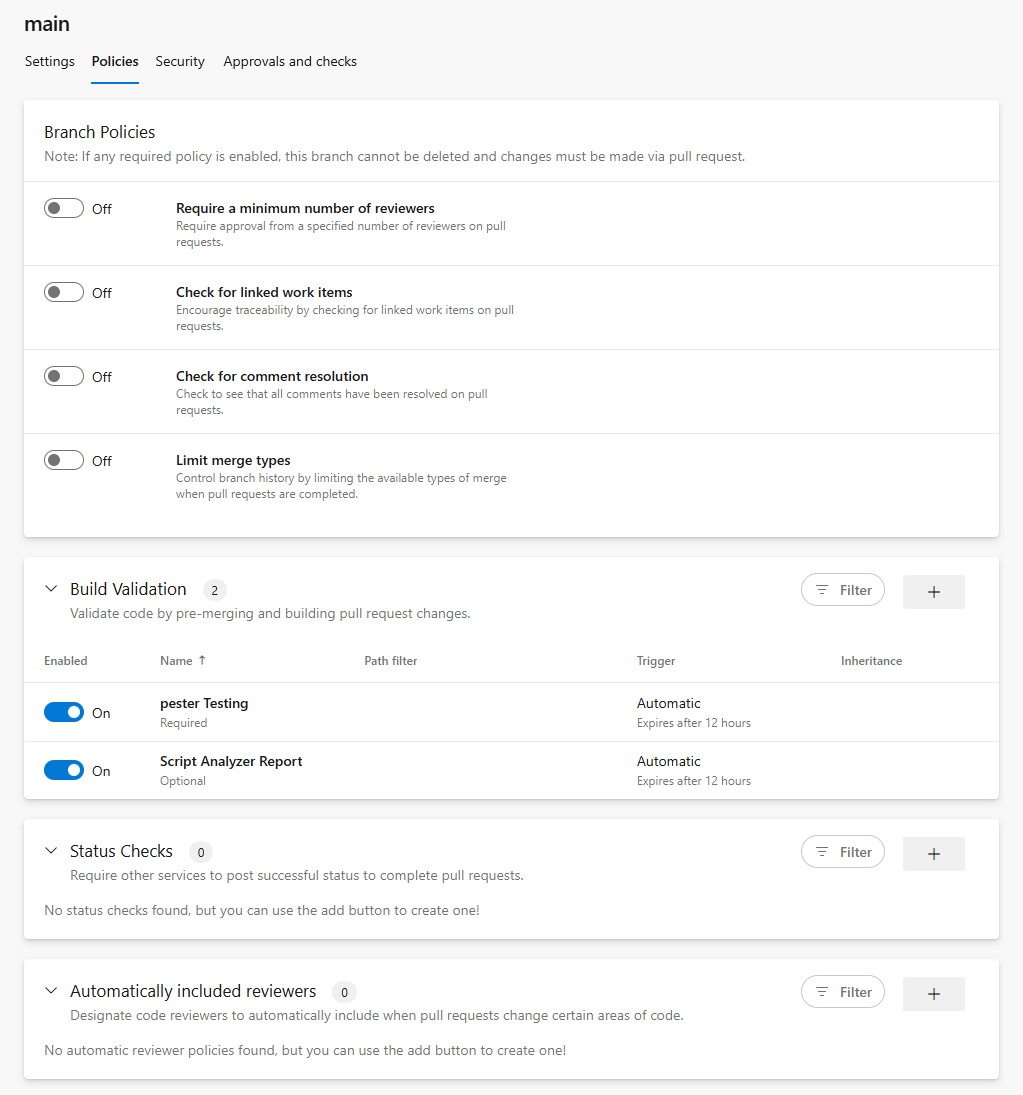

  5. You should now have 2 Build Validation steps, 1 Opotional Script Analyzer step, and 1 Required Pester step

Part 4 - Create a Function and a Test

If we did all the previous steps correctly, we should not need to do any more settings configurations for this repository.

Creating our get-helloWorld function

  1. Return to VSCode (or other IDE)
  2. Create a branch called feature/hello-world-function.
    • You can deviate from this naming convention if you like. The objective is to be consistant.
  3. Create a new file in the functions sub-directory of the source directory
    • Call the file Get-HelloWorld.ps1
  4. Code up your powershell function code.
    • An example is provided below
    • Make sure you include some form of Inline Help and follow good coding practices

Hint: In VSCode you can create a branch by clicking on the current branch name in the bottom left corner, then in the dialog box, selecting +Create New Branch. VSCode will automatically switch you to the new branch

function Get-HelloWorld
{

    <#
        .SYNOPSIS
            Return Hello World

        .DESCRIPTION
            Return Hello World. Allows you to overwrite the default name of world with

        .EXAMPLE
            Get-HelloWorld

            #### OUTPUT
            Returns "Hello World!"

        .EXAMPLE
            Get-HelloWorld -name 'James'

            #### OUTPUT
            Returns "Hello James!"
    #>

    [CmdletBinding()]
    PARAM(
        #Name param, specify to override the default of World
        [Parameter()]
        [string]$Name = 'World'
    )
    begin{
        #Return the script name when running verbose, makes it tidier
        write-verbose "===========Executing $($MyInvocation.InvocationName)==========="
        #Return the sent variables when running debug
        Write-Debug "BoundParams: $($MyInvocation.BoundParameters|Out-String)"

    }

    process{
        "Hello $Name!"
    }

}

Creating our Pester Test

  1. Create a new file in the functions sub-directory of the source directory
    • Call the file Get-HelloWorld.Tests.ps1
    • It is important that Tests is in the correct, capital-case format for invoke-pester to work.
  2. Code up your Pester Test. You can use the example below
    • Don’t forget to load your functions file in a before all block
    • This can be achieved dynamically with this little piece of code: . $PSCommandPath.Replace('.Tests.ps1','.ps1')
BeforeAll{
    #Load The Function File
    . $PSCommandPath.Replace('.Tests.ps1','.ps1')
}

Describe "Get-HelloWorld Default Parameters" {
    BeforeAll {
        $hello = Get-HelloWorld
    }

    It 'Should not be null or empty' {
        $hello |Should -Not -BeNullOrEmpty
    }

    It 'Should contain "Hello World!"' {
        $hello |Should  -Be 'Hello World!'
    }
}

Describe "Get-HelloWorld Custom Name" {
    BeforeAll {
        $hello = Get-HelloWorld -name 'James'
    }

    It 'Should not be null or empty' {
        $hello |Should -Not -BeNullOrEmpty
    }

    It 'Should contain "Hello James!"' {
        $hello |Should  -Be 'Hello James!'
    }
}

Run our Pester Test Locally

  1. It is a good idea to test locally before we submit our code back to the repository
    • We can do that from our invoking pester from our working directory, as per below
    • If everything is working as intended, you should have passed the 4 tests (represented in our Pester test as ‘It’ blocks)
Invoke-Pester '.\source\functions\Get-HelloWorld.Tests.ps1'

invoke-pester

Part 5 - Pull Request and BuildAndRelease

Commit changes

  1. Commit just our functions file with the feat commit prefix and a relevant comment
    • Something like feat: added get-helloWorld function
  2. Now commit the pester test file using the test commit prefix
    • Something like test: added Pester testing for get-helloWorld
  3. Publish your branch back to Azure DevOps

Hint: If you are not sure how to commit in VSCode, switch to the Source Control item in the left-most menu. You will need to stage each file by clicking the small plus sign next the the filename. Enter the commit message into the text box labelled changes, when ready, hit commit. Once all your files are committed, you can publish your branch with the Publish Branch button that replaces the Commit button

Note: Don’t forget to checkout the Main branch on your local working directory before adding any more code.

Create a Pull request

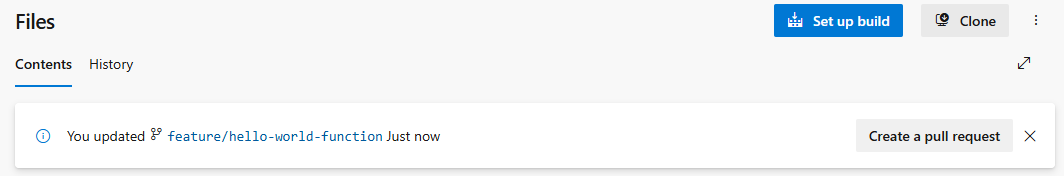

  1. In your browser, navigate to your Azure DevOps project workspace and then repository and select the files Item. You should see a notification banner at the top advising that a new branch can be used to create a PR.
    • New PR
  2. Click the option to create a Pull Request

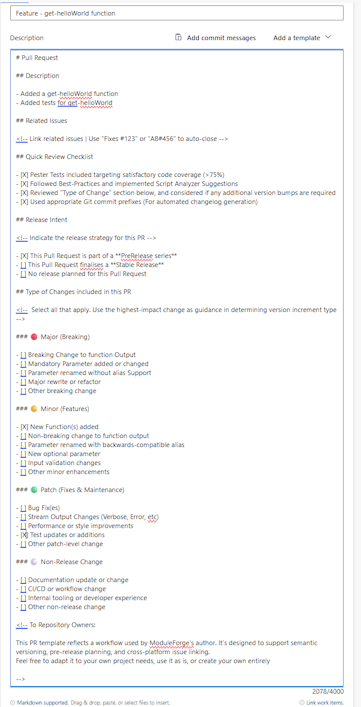

  3. Fill in the Pull Request template
    • Type in a decent description
    • Check the appropriate options with an X to help determine your next version, and to make it easier to review later.
    • PR Form
  4. Once you have completed the PR template, create the Pull Request

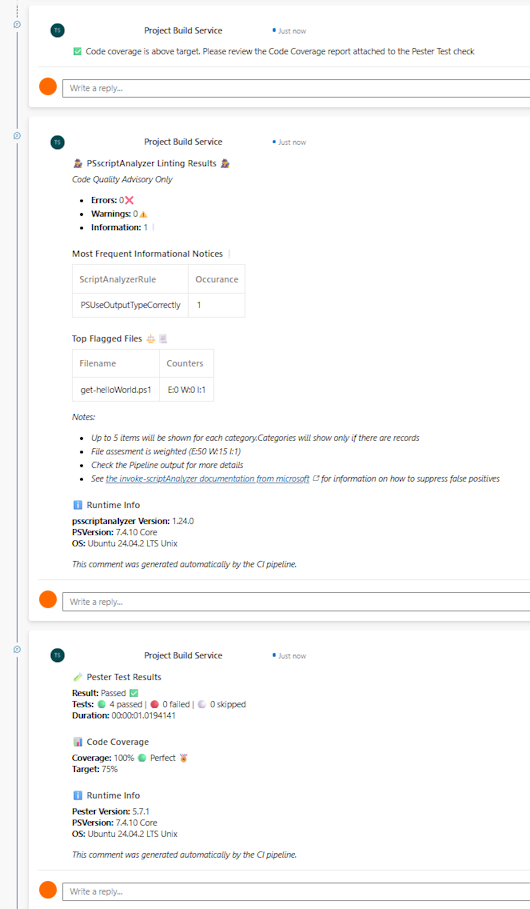

  5. On submission of a Pull Request to the Main branch, the Pester and ScriptAnalyzer workflows will automatically be invoked. The results will be added as comments to the PR
    • New Repository
  6. If everything is tracking well, our tests passed, there are no merge conflicts, and we should be ok to proceed to Merge Pull Request

If you want to explore your pester results in more details before a merge, you can click on checks and review the pipeline results in details. You can also check out the Code-Coverage results that get added as part of the Pester Test step.

Build and Release

  1. With our Pull Request merged, navigate to Pipelines menu
  2. Find and select the Build and Release pipeline associated to your repository

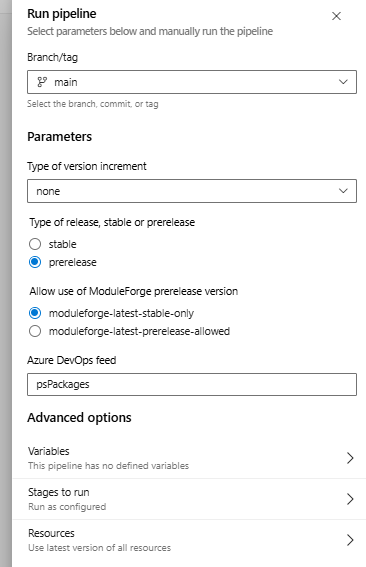

  3. Select the Run Pipeline option, a menu will appear. Fill out the fields appropriately and then choose run workflow
    • Branch should be main
    • Since this is our first release, lets leave the type to increment as none
    • Type of release should be prerelease
    • The ModuleForge version should be stable
    • The feedname should match what you set in the PreRequisits
      • If you changed the feedname, recommend you also update this form to reflect that change by editing the buildAndRelease.yml file
    • run pipeline
  4. Wait for our pipeline to finish.
  5. Browse to Artifacts and your Package Feed, where you can

If you want to manually download and install your new module, you can download the nupkg from the package feed, rename the extension to .zip and uncompress to find your module.

Part 5 - Install locally with PSresourceGet

In your PowerShell terminal with PSResourceGet ready to go, you can register a new repository. You will only need to register the repository once.

  1. Create a Azure DevOps Personal Access Token.
    • You can find the Personal Access Tokens setting in the small User Settings menu next to your Profile headshot in the top right of Azure DevOps
    • The Personal Access Token only requires Packages: Read access
    • The Personal Access Token value will form the password part of our credential object and allow us to use our Azure Devops feed.
  2. In a PowerShell Terminal, register your Azure Devops feed as a repository
    • There are two ways to register
      • With a Credential Object,
      • With a special CredentialInfo class (If you are using Microsoft.PowerShell.SecretManagement module). This is the recommended approach

You can read more about the next steps here

Using Azure DevOps Package Feed with Credentials

To register with a credential, see the example code below

### Create a credential object
### Your username will be your Azure DevOps account email
### The password will be the PAT you created
$azdCredential = Get-Credential

#use the register-psResourceRepository commandlet to register
#This is easier to do with splatting
#Don't forget to swap out the azdCredential with your actual Azure account
$splat = @{
    Name = 'myAzureDevopsFeed'
    Uri = 'https://pkgs.dev.azure.com/<ORGANIZATION_NAME>/<PROJECT_NAME>/_packaging/<FEED_NAME>/nuget/v3/index.json'
    Trusted = $true
}
#Splat it in
Register-PSResourceRepository @splat

#Once registered, you can use it in a similar fashion to PSGallery
#Don't forget to specify the -PreRelease flag
Find-PSResource -Name psGetHelloWorld -Prerelease -Repository myAzureDevopsFeed -Credential $azdCredential

To register with Microsoft.PowerShell.SecretManagement, first, create a new secret in your secret vault. The username should be your Azure DevOps account email, and the password the PAT you created

### Create a pointer to your secret and vault
### Your username will be your AZD email
### The password will be the AZD PAT you created
#You will need to make sure that PSResourceGet module is imported first
$credentialInfo = [Microsoft.PowerShell.PSResourceGet.UtilClasses.PSCredentialInfo]::new('VaultName', 'SecretName')

#use the register-psResourceRepository commandlet to register
#This is easier to do with splatting
#Don't forget to swap out the azdCredential with your actual azure account
#
$splat = @{
    Name = 'myAzureDevopsFeed'
    Uri = 'https://pkgs.dev.azure.com/<ORGANIZATION_NAME>/<PROJECT_NAME>/_packaging/<FEED_NAME>/nuget/v3/index.json'
    Trusted = $true
    CredentialInfo = $credentialInfo
}
#Splat it in
Register-PSResourceRepository @splat

#Once registered, you can use it in a similar fashion to PSGallery
#Don't forget to specify the -PreRelease flag
#Because we supplied a CredentialInfo pointer, Find-PSResource will automatically open our vault to retrieve the secret when required
Find-PSResource -Name psGetHelloWorld -Prerelease -Repository myAzureDevopsFeed

A note on V3 nuget feeds and PSResourceGet. Wildcard searching is not supported at this time, you will need to know the exact name of your module for find and install commands to work.

Wrapping up

In this tutorial, we created a new repository, added our ModuleForge scaffolding, created a new PowerShell function + test, performed a review and unit test, and released it as a PreRelease into our private Azure DevOps Packages feed for consumption. We effectively made a CI/CD PowerShell Pipeline using Github Actions + ModuleForge, and published a single-function module.
